TuffTrak® xl+
TuffTrak® XL+ one of the largest of the TuffTrak® series, extending the features of the TuffTrak® XL by incorporating an overlap connection system to firmly lock adjacent mats together providing faster installation and increased strength. TuffTrak® XL+ is designed as an extra strong, extra wide roadway, manufactured as a solid one piece 4090 mm long composite mat to provide superior support for loads of up to 150 tons.
TuffTrak® XL+ incorporates a dual grip design featuring our chevron traction® surface, and a low profile surface on the reverse both incorporating micro traction™ to further increase grip. This substantially improves mud dispersal and forward motion of vehicles making the TuffTrak® XL+ ideal for use in the most challenging weather and ground conditions.
- High Molecular Weight / Ultra High Molecular Weight Polyethylene blend
- Chevron traction® surface nub design for maximum grip
- One piece solid construction provides superior strength
- Extra wide roadway to maximise trackways and work pads
- Overlap connection system firmly locks adjacent mats together
- Robust Four3™ stubby camlock connector
- 8 connection points, allowing multiple configurations
- Load bearing capacity up to 150 tons*
TuffTrak® XL+ is an extra wide heavy duty ground protection solution specially incorporating a 200 mm overlap system perfect for use as a trackway or workpad. Manufactured from High Molecular Weight / Ultra High Molecular Weight Polyethylene, it has a load bearing capacity of up to 150 tons.*
Material: High Molecular Weight / Ultra High Molecular Weight Polyethylene
- 4090 mm x 2045 mm x 47 mm
- Usable surface area 7.2 m2
- Weight 297 kg
- Pure compressive load capacity 150 tons*
- 60 mats per truck / 50 per 40 ft container
- Four3™ stubby connector
- Chevron traction® surface
Download the TuffTrak® XL+ Product Sheet

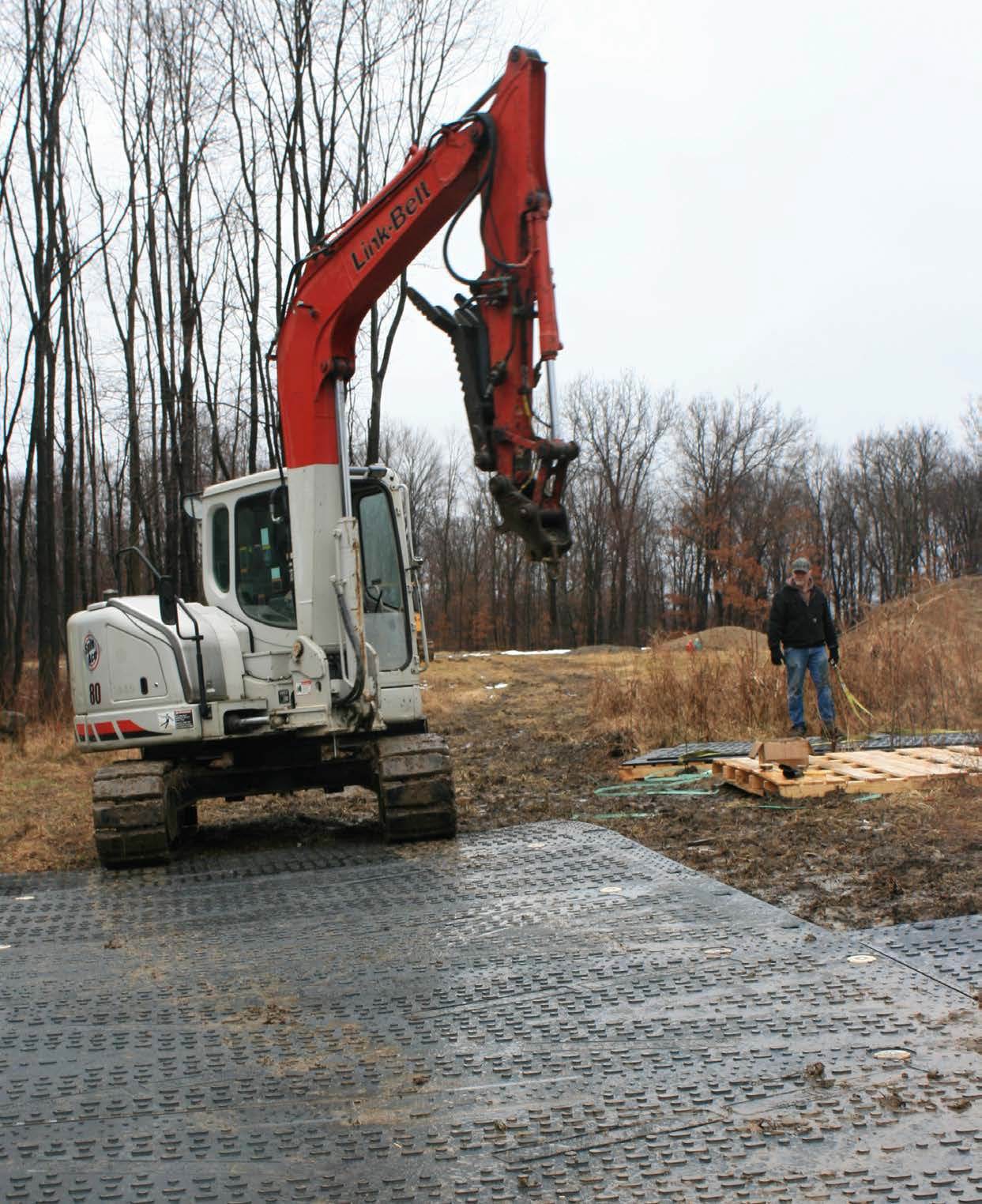

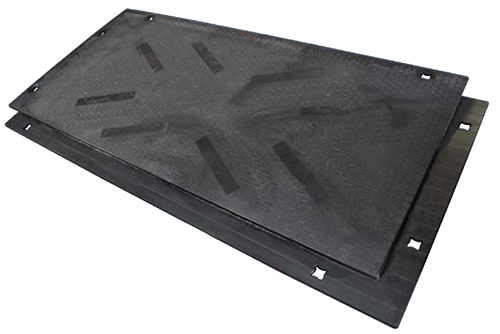

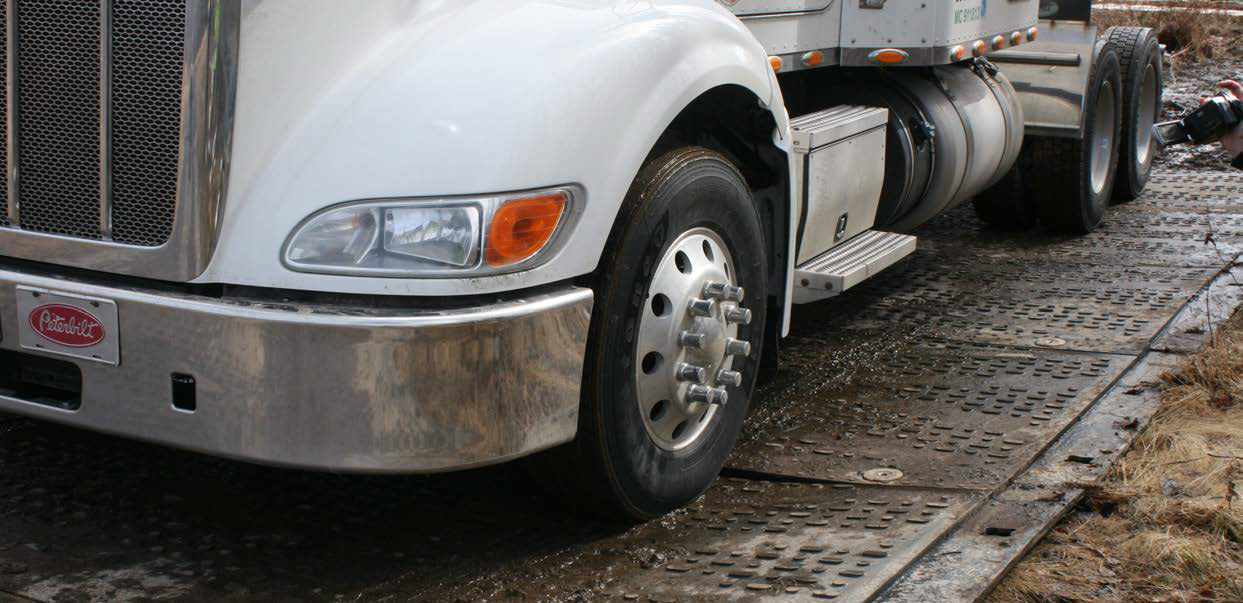

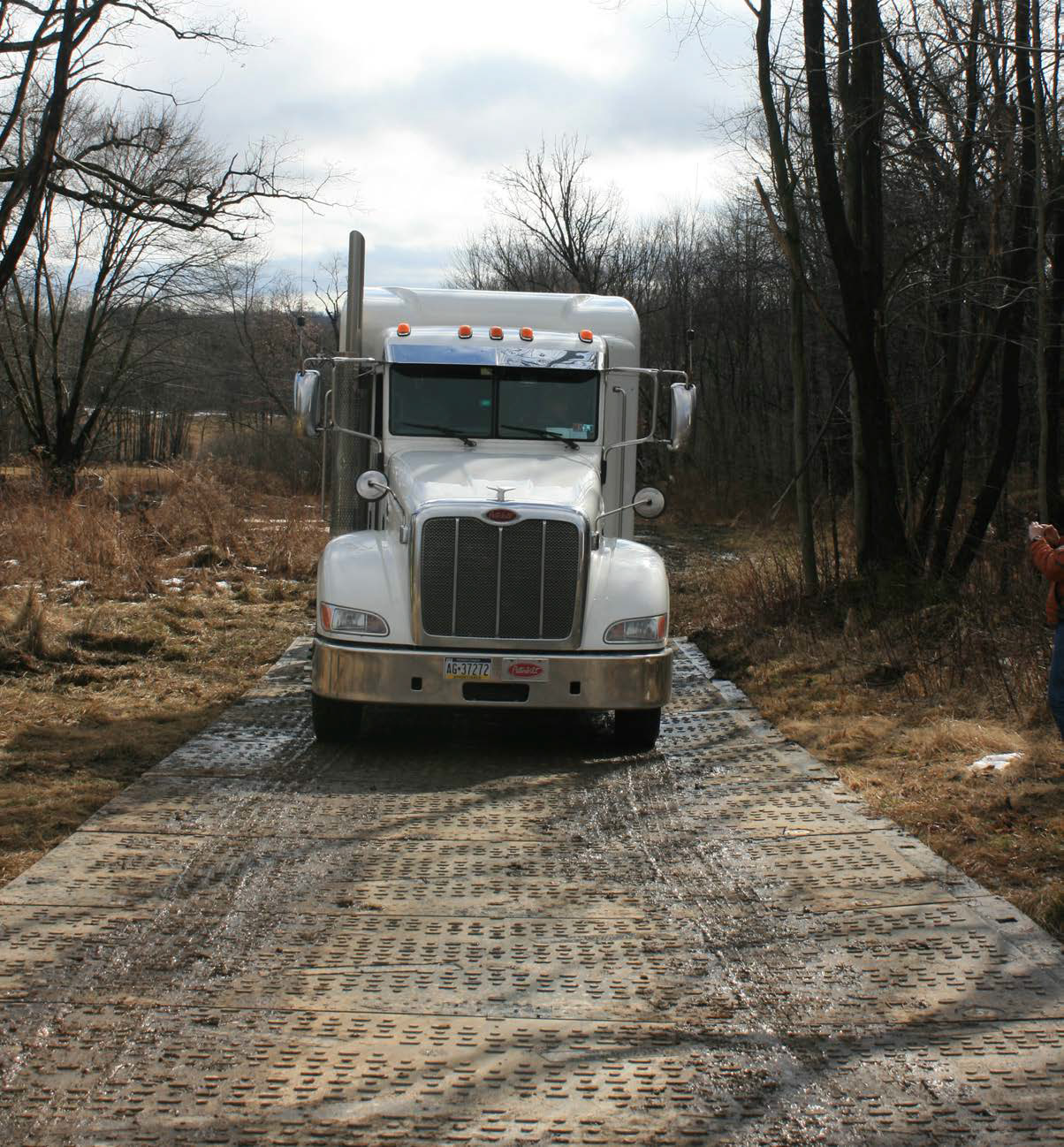

Product Photos (click to view larger image)
CALL FOR RENTAL OR SALES 440-232-0849
